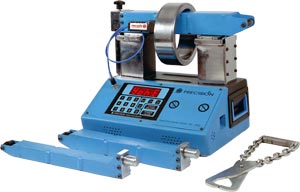

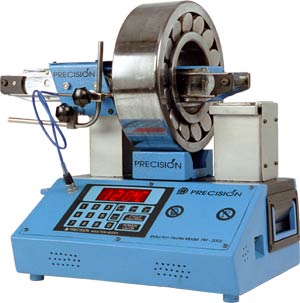

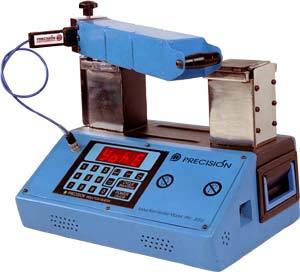

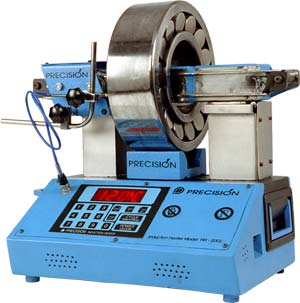

PRECISION Induction Heater model PIH 2002 has medium capacity
to heat the components.
It is also intelligent micro controller based electronic
controls. It weights about 44 kg. It can be easily carried
to the site of operation, using specially designed handle
provided on both sides. It can heat a bearing of 28 kg to
30 kg to temperature of 100oC in 5 minutes. PIH-2002 consists
of the control mounted on main body of Induction Heater and
a remote control is provided for higher efficiency.
| Sr. |
PRODUCT DATA |
PIH - 2002 |
| 1) |
Diameter (mm) Bearing |
20 to 400 |
| 2) |
Bearing Weight |
50 Kg |
| 3) |
Power |
6.0 / 8.0 KVA |
| 4) |
Voltage |
230V / 440V |
| 5) |
Power Control |
25%, 50%, 75%, & 100% |
| 6) |
Temperature Control (Range) |
0 - 250oC |
| |
Maximum Temperature |
400oC |
| |
Accuracy Temperature |
± 3oC |
| 7) |
Time - Control |
0 - 99 Minutes |
| 8) |
Residual Magnetism |
< 2A / cm |
| 9) |
Overall dimensions (wxdxh) (mm) |
430 x 300 x 310+ |
| 10) |
Space between supports (wxh) (mm) |
190 x 170 |
| 11) |
Weight (Main Unit) |
47 Kg |
| 12) |
Weight with Standard Yokes |
63 Kg |
| 13) |
Horizontal Yoke Sizes (mm) |
65 x 65x 350 |
| |
|
--------- |
| |
|
--------- |
| 14) |
Can Heat Sealed & Pre-greased Bearings |
|
| 15) |
Thermal Over Protection |
|
| Sr. |
Optional Accessories |
| 1) |
Horizontal Yoke Sizes (mm) |
20 x 20 x 350 |
| |
|
30 x 30 x 350 |
| |
|
40 x 40 x 350 |
| |
|
50 x 50 x 350 |
| 2) |
Digital Thermometer (0-500oC) |
 |
| 3) |
Roll - Sliding Model |
|
| 4) |
Swing Arm Model |
|
| 5) |
Riser Block (Pair) (mm) |
|
| 6) |
Magnetic Temperature Probe |
|
| 8) |
Equipment Trolley |
|
We reserve the right to change the
specifications without prior notice. |
