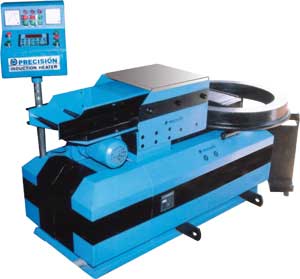

PRECISION Induction
Heater model PIH 2005 has highest capacity to heat the components.
It has controls similar to PIH-series, which are intelligent
microcontroller based electronic controls with data logger which
can upload the all data month wise.
It weights about 3 Ton and capable to heat the Railway Wheel
Tyre within 15 to 20 min.

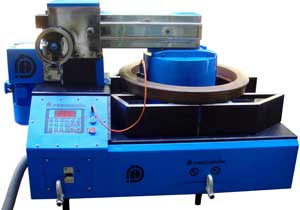

Model PIH 2005 is provided with automated Roll-sliding Arrangement
for horizontal yoke and operated automatically and manually
in case of power failure. The automated Roll-Sliding Arrangement
is so designed that the yoke gets lifted automatically rolls
off from the vertical supports without rubbing or damaging
and scraping mating surfaces. This arrangement provides additional
safety, ease of operation and helps to improve productivity.
| Sr. |
PRODUCT DATA |
PIH - 2004 |
| 1) |
Power |
60.0 / 127.0 KVA |
| 2) |
Voltage |
3Ø x 440V |
| 3) |
Current (Max) |
137 A / 290 A |
| 4) |
Power Control |
25%, 50%, 75%, &
100% |
| 5) |
Temperature Control (Range) |
0 - 400oC / 0 - 500oC |
| |
Maximum Temperature |
500oC |
| |
Accuracy Temperature |
± 3oC |
| 6) |
Time - Control |
0 - 99 Minutes |
| 7) |
Residual Magnetism |
< 1A / cm |
| 8) |
Overall dimensions (wxdxh) (mm) |
1780 x 790 x 1150 |
| 9) |
Weight (Main Unit) |
3000 Kg. (Apx.) |
| 10) |
Special Hand Gloves |
 |
| Sr. |
Optional Accessories |
| 1) |
Digital Thermoneter (0-500 C) |
|
| 2) |
Roll - Sliding Model |
|
| 3) |
Automated Roll Sliding Arrangement
|
|
| 4) |
Hydraulic Equipment Trolley |
|
| 5) |
Riser Block (Pair) (mm) |
|
| 6) |
Remote Control
|
|
|
