PRECISION Induction
Heater model PIH 2004 has heavy capacity to heat the components.
It has controls similar to PIH-2003, which are intelligent microcontroller
based electronic control
It weights about 300kg. It can heat a bearing of 700 kg to
temperature as per requirement in customized time.
Model PIH 2004 is provided with manual or automated Roll-sliding
Arrangement for the standard yoke 105 x 105 x 590 mm. The
Roll-Sliding Arrangement is so designed that the yoke gets
lifted mechanically or automatically rolls off from the vertical
supports without rubbing or damaging and scraping mating surfaces.
This arrangement provides additional safety, ease of operation
and helps to improve productivity.
| Sr. |
PRODUCT DATA |
PIH - 2004 |
| 1) |
Power |
18 / 25 / 40 KVA |
| 2) |
Voltage |
2Ø x 440V |
| 3) |
Current (Max) |
41 / 57 / 90 Amps |
| 4) |
Power Control |
25%, 50%, 75%, &
100% |
| 5) |
Temperature Control (Range) |
0 - 400oC |
| |
Maximum Temperature |
400oC |
| |
Accuracy Temperature |
± 3oC |
| 6) |
Time - Control |
0 - 99 Minutes |
| 7) |
Residual Magnetism |
< 1A / cm |
| 8) |
Overall dimensions (wxdxh) (mm) |
750 x 400 x 670 |
| 9) |
Space between supports (wxh) (mm) |
340 x 360 |
| 10) |
Weight (Main Unit) |
300 Kg. (Apx.) |
| 11) |
Weight with Standard Yokes |
345 Kg. |
| 12) |
Horizontal Yoke Sizes (mm) |
105 x 105 x 625 |
| 13) |
Special Hand Gloves |
 |
| Sr. |
Optional Accessories |
| 1) |
Horizontal Yoke Sizes (mm) |
40 x 40
x 625 |
| |
|
45 x 45 x 625 |
| |
|
50 x 50 x 625 |
| |
|
55 x 55 x 625 |
| |
|
60 x 60 x 625 |
| |
|
65 x 65 x 625 |
| |
|
70 x 70 x 625 |
| |
|
75 x 75 x 625 |
| |
|
80 x 80 x 625 |
| |
|
85 x 85 x 625 |
| |
|
90 x 90 x 625 |
| 2) |
Digital Thermoneter (0-500 C) |
|
| 3) |
Roll - Sliding Model |
|
| 4) |
Automated Roll Sliding Arrangement
|
|
| 5) |
Swing Arm Model |
|
| 6) |
Riser Block (Pair) (mm) |
|
| 7) |
Magnetic Temperature Probe |
|
| 8) |
Sp. Insulated Yokes (>150 C) |
|
| 9) |

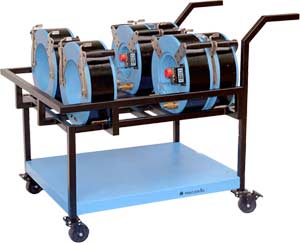

Equipment Trolley |
|
| 10) |
Remote Control
|
|
We reserve the right to change the
specifications without prior notice. |
