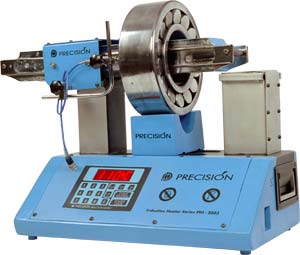

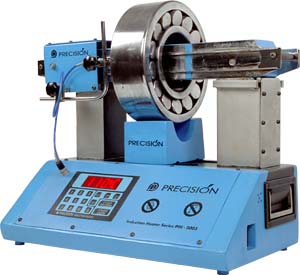

PRECISION Induction
Heater model PIH 2003 has heavy capacity to heat the components.
It has controls similar to PIH-2002, which are intelligent microcontroller
based electronic control.
It weights about 86 kg. It can heat a bearing of 40 kg to
50 kg to temperature of 100oC in 6-7 minutes.
Model PIH 2003 is provided with manual or automated Roll-sliding
Arrangement for the standard yoke 80x80x490 mm. The Roll-Sliding
Arrangement is so designed that the yoke gets lifted mechanically
or automatically rolls off from the vertical supports without
rubbing or damaging and scraping mating surfaces. This arrangement
provides additional safety, ease of operation and helps to
improve productivity.
| Sr. |
PRODUCT DATA |
PIH - 2003 |
| 1) |
Diameter (mm) Bearing |
60 to 500 |
| 2) |
Bearing Weight |
70 Kg |
| 3) |
Power |
11 / 16 KVA |
| 4) |
Voltage |
440V |
| 5) |
Power Control |
25%, 50%, 75%, & 100% |
| 6) |
Temperature Control (Range) |
0 - 250oC |
| |
Maximum Temperature |
400oC |
| |
Accuracy Temperature |
± 3oC |
| 7) |
Time - Control |
0 - 99 Minutes |
| 8) |
Residual Magnetism |
<2A / cm |
| 9) |
Overall dimensions (wxdxh) (mm) |
590 x 330 x 390+ |
| 10) |
Space between supports (wxh) (mm) |
320 x 205 |
| 11) |
Weight (Main Unit) |
83 Kg. |
| 12) |
Weight with Standard Yokes |
115 Kg. |
| 13) |
Horizontal Yoke Sizes (mm) |
80 x 80x 500 |
| |
|
--------- |
| |
|
--------- |
| 14) |
Can Heat Sealed & Pre-greased Bearings |
|
| 15) |
Thermal Over Protection |
|
| Sr. |
Optional Accessories |
| 1) |
Horizontal Yoke Sizes (mm) |
30 x 30 x 500 |
| |
|
40 x 40 x 500 |
| |
|
50 x 50 x 500 |
| |
|
65 x 65 x 500 |
| 2) |
Digital Thermometer (0-500oC) |
 |
| 3) |
Roll - Sliding Model |
|
| 4) |
Swing Arm Model |
|
| 5) |
Riser Block (Pair) (mm) |
|
| 6) |
Magnetic Temperature Probe |
|
| 8) |
Equipment Trolley |
|
We reserve the right to change
the specifications without prior notice.
|
